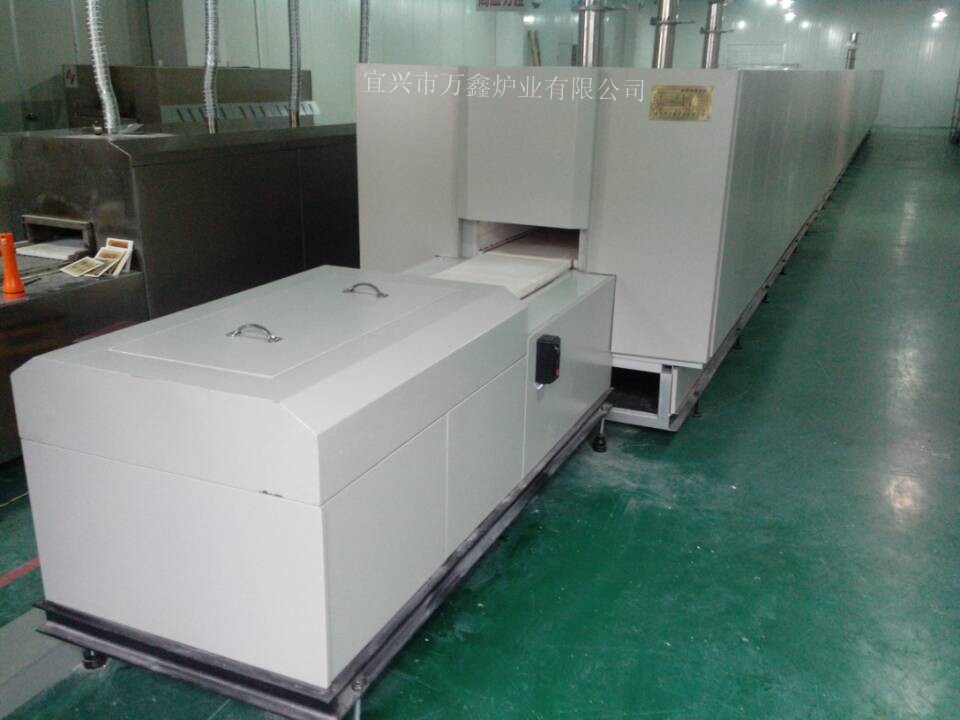

TZL系列单孔单推板隧道式电阻炉
 点击数:3320次 添加时间:2014/7/10 [关闭] [收藏]



TZL series single hole single push plate tunnel resistance furnace

用途:稀土、锂电池、四氧化三钴、氧化铟、电子陶瓷粉料、陶瓷制品等的烧成和排胶。



特点:采用先进保温材料、高效节能,使用成本低,特别炉膛设计,温度均匀。



选件:加热元件(电阻丝抗腐蚀,硅碳棒热能高),推进方式。



使用温度:100℃—1100℃





Usage: the firing and latex excluding of rare earth, lithium batteries, cobalt oxide, indium oxide, electronic ceramic powder, ceramic products.

Features: use the advanced insulation materials, low energy efficient, cost, with special furnace design and uniform temperature.

Option: heating element (resistance wire with corrosion resistant, high heat energy silicon carbide), propulsion method.

Operate temperature: 100 ℃~1100 ℃

主要技术参数The main technical parameters

型号

Type

   炉膛尺寸

Furnace Size

(L×W×H)mm

   设备尺寸

Equipment Size

(L×W×H)mm

装机功率

Installed Power

 (KW)

控温组数

(温区)

Number of

Temperature

Control Group

(Temperature Area)

常用工作温度

(℃)

Common

Operating

Temperature

加热元件

Heating

Element



TZL-100-9

11200×400×230

14200×1500×1650

   100

  6

   950

电阻丝

Resistance Wire

TZL-120-9

15000×400×260

18000×1600×1700

   120

  8

   950

电阻丝

Resistance Wire

TZL-70-11

9000×260×160

12000×1400×1600

   70

  7

   1000

电阻丝

Resistance Wire

TZL-80-11

10000×400×180

13000×1600×1650

   80

  6

   1100

硅碳棒

Silicon Carbide

TZL-100-11

12500×400×160

15500×1600×1700

   100

  6

   1150

硅碳棒

Silicon Carbide



 可根据用户要求进行特殊设计

It can be specially designed according to users’ requirements
